Sheet metal cutting techniques have evolved significantly over the years, from traditional methods like manual cropping and sawing to more modern methods like waterjet cutting and plasma cutting. These innovative techniques have revolutionized the sheet metal cutting industry by providing faster, more precise, and cost-effective solutions.
Waterjet cropping uses a high-pressure jet of water to cut through sheet metal, while plasma pruning uses a stream of ionized gas to melt and cut through the metal. Both techniques offer several advantages over traditional pruning methods, such as reduced waste, faster production times, and increased accuracy.
In this article, we will explore some of the most innovative sheet metal cutting techniques available today, including waterjet pruning, plasma trimming, and other cutting-edge technologies. We will examine their benefits, applications, and limitations, providing a comprehensive overview of the latest developments in sheet metal cropping. Whether you are a professional fabricator or an enthusiast looking to explore new trimming methods, this article will provide valuable insights into the exciting world of innovative sheet metal cutting techniques.
Waterjet Cutting
Waterjet cutting is a versatile and precise trimming method that uses a high-pressure jet of water mixed with abrasive particles to inscribe through sheet metal. The waterjet machine can cut various materials, including metals, plastics, ceramics, and composites. The process involves the following steps:
1. Material Preparation – The sheet metal is cleaned and placed on the cutting bed.
2. CAD Design – CAD, or Computer-Aided Design, uses computer software to create a 3D model of the desired sheet metal product. CAD software offers precise measurements and allows for the creation of complex shapes and designs. Once the CAD design is complete, it can be used to program the pruning equipment for efficient and accurate cropping.
3. Cutting – The waterjet machine starts trimming the sheet metal using a high-pressure stream of water mixed with abrasive particles.
Advantages and Limitations
Waterjet cutting offers several advantages over traditional cropping methods, such as increased accuracy, reduced waste, and the ability to cut a wide range of materials. This method is particularly effective for trimming materials that are difficult to cut with other techniques, such as thick metals and composite materials. Additionally, waterjet pruning is a cold-cutting process, which means that there is no heat-affected zone (HAZ) or thermal distortion, resulting in clean and precise cuts.
However, there are also limitations to waterjet pruning. It can be slower than other etching methods, which can affect production times and increase costs. The need for a high-pressure water pump and abrasive material can also add to the cost and complexity of the process. Additionally, waterjet cropping may not be suitable for carving certain materials, such as tempered glass, due to the risk of shattering.
Laser Cuttings
Laser cutting has emerged as a highly efficient and precise technique for sheet metal cutting. This innovative technology utilizes a high-powered laser beam to cut through various types of metal sheets with exceptional accuracy. Let’s explore why laser cutting has become a preferred method in the sheet metal industry.
One of the key advantages of laser cutting is its ability to produce intricate and complex designs with remarkable precision. The laser beam, controlled by computer programming, follows a predetermined path to cut the metal sheet with utmost accuracy, resulting in clean, sharp edges and tight tolerances. This level of precision is particularly advantageous for industries such as aerospace, automotive, and electronics, where intricate metal components are crucial.
Another benefit of laser cutting is its versatility. Laser cutting machines can handle a wide range of materials, including stainless steel, aluminum, copper, and even exotic metals. This versatility allows for greater flexibility in design and production, as different metal types and thicknesses can be easily accommodated.
Furthermore, it offers exceptional speed and efficiency. The laser beam operates at high speeds, allowing for rapid cutting and increased productivity. This is particularly beneficial for large-scale manufacturing where fast turnaround times are essential.
It offers a non-contact cutting method. Unlike traditional cutting techniques that involve physical contact with the metal sheet, laser cutting eliminates the need for tools, reducing the risk of damage or distortion to the material. This non-contact nature also allows for greater flexibility in cutting irregular or delicate shapes.
Plasma Cutting

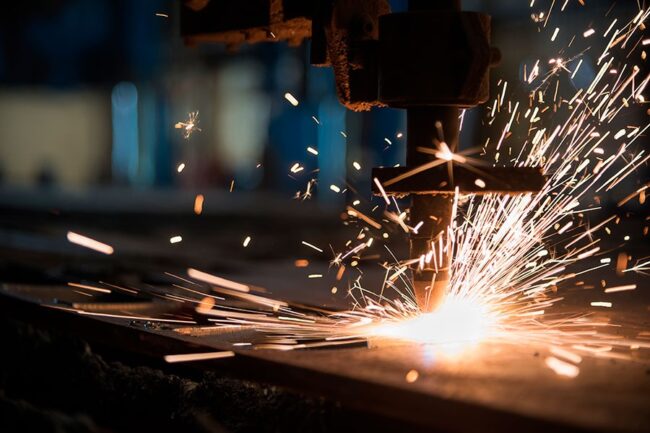

Plasma cutting is an innovative and versatile cutting method that uses a plasma arc to cut through electrically conductive materials such as steel, aluminum, and copper. The technique involves the use of a plasma torch, which produces a high-velocity jet of ionized gas that heats and melts the metal. The molten metal is then blown away from the cut, creating a clean, precise edge.
Plasma shortening is popular in various industries, including automotive, construction, and manufacturing, as it offers several benefits. One of the most significant advantages of plasma trimming is its cropping speed, which can reach up to 500 inches per minute, making it one of the fastest shortening methods available.
Another benefit of plasma trimming is its ability to etch through thicker materials, up to 6 inches thick, making it ideal for applications that require high-thickness cuts. Additionally, plasma cropping is relatively cost-effective, requiring less setup time and maintenance compared to other etching methods.
Plasma shortening produces minimal waste, and the method is environmentally friendly compared to other engraving methods such as oxyfuel pruning, as it produces no hazardous waste or fumes.
Advantages and Limitations
Plasma trimming is a versatile cutting technique that offers several advantages, such as speed, efficiency, and the ability to cut through a wide range of materials, including stainless steel, aluminum, and copper. This method is particularly effective and can be used for both straight and curved cuts. Plasma cropping is also a cost-effective alternative to other cutting methods, such as laser pruning.
However, there are also limitations to plasma cutting. The heat generated during the process can cause a heat-affected zone (HAZ) and thermal distortion in the material, which can affect the quality of the cut. The process can also generate a lot of noise and produce harmful fumes and gases, which require proper ventilation and safety measures. Additionally, plasma pruning is not suitable for cutting non-metallic materials.
Future of Sheet Metal Cutting Techniques
The future of sheet metal pruning techniques is likely to be shaped by advances in technology that will continue to make the process faster, more precise, and more efficient. One area of development is the use of artificial intelligence and machine learning algorithms to optimize cutting patterns and reduce waste. Another area is the integration of robotics and automation into the pruning process, allowing for faster and more consistent production.
There is also a growing interest in eco-friendly trimming techniques that use sustainable and renewable energy sources, such as solar and wind power. Additionally, the use of additive manufacturing, also known as 3D printing, is expected to have an impact on sheet metal cropping by providing new ways to create complex shapes and structures.
As these new technologies continue to emerge and evolve, it is important for professionals in the sheet metal cutting industry to stay up-to-date and adapt to these changes to remain competitive and provide the best solutions to their customers.
Conclusion
In conclusion, innovative sheet metal cropping techniques such as waterjet pruning and plasma cutting have transformed the way we cut and fabricate sheet metal. With their numerous advantages over traditional pruning methods, these techniques have become popular across various industries, from aerospace to automotive and beyond.
As technology continues to advance, we can expect even more sophisticated sheet metal pruning techniques to emerge, providing new opportunities for increased efficiency and precision. By keeping up with the latest developments in the field, professionals in the sheet metal cutting industry can stay ahead of the curve and continue to deliver high-quality products to their customers.
Innovative sheet metal trimming techniques have certainly come a long way, and they will undoubtedly continue to evolve and improve. By embracing these cutting-edge technologies, we can create a more sustainable, cost-effective, and efficient sheet metal cropping industry for the future.
